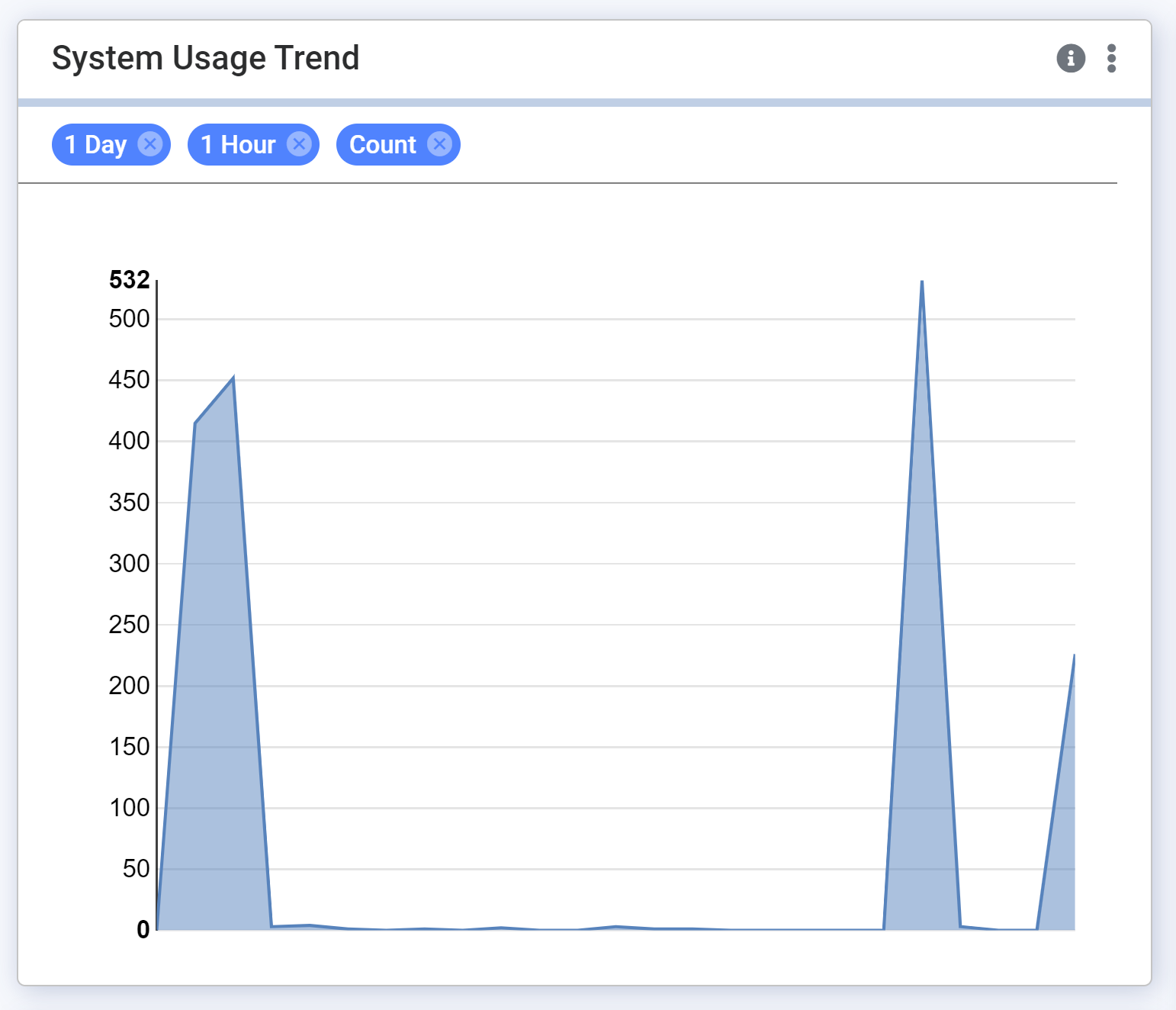

Use the System Usage Trend dashboard widget to view system usage trends over a specific period. By default, the chart shows data for the previous 24 hours and uses the COUNT function.

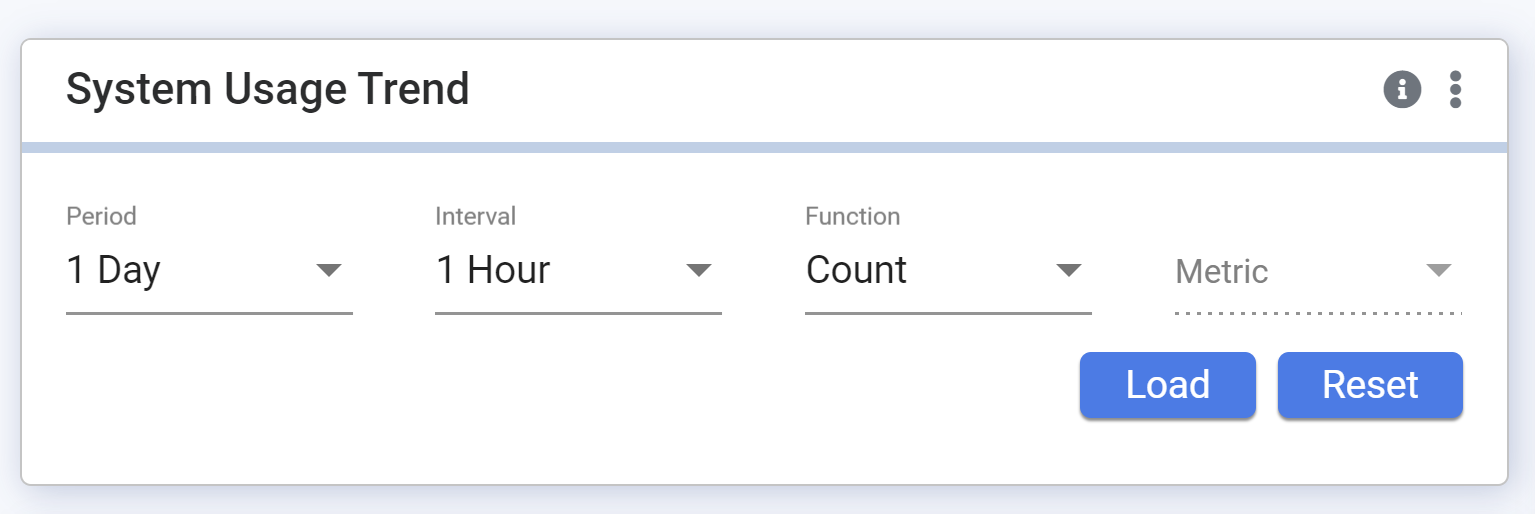

1. Click  and Filter. Select the time period you want to view data for, the time interval to use on the graph, and function you want to view. You can choose from the following functions (these functions operate on aggregate groupings):

COUNT  Number of elements.

AVG  Mathematical average.

MIN  Smallest number in the set.

MAX  Largest number in the set.

SUM  Total of all numbers in the set.



2. Click Load. System usage trends for the selected period are shown.



You can:

  • Hover over a point on the graph to view details.
  • Click  and Filter to reset the graph and select different options.
